Hose sets, angled

Hose sets, angled item number 103448 Hose sets, angled item number 103448
  • Nominal-diameter: DN 3
  • Length: 200 mm
  • Connection-size-input: G1/8
  • Specials: M10X1 & G1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 102205 Hose sets, angled item number 102205
  • Nominal-diameter: DN 3
  • Length: 100 - 320 mm
  • Connection-size-input: M8X1
  • Specials: M8X1 on both sides, adapters M10, G1/8 and G1/4 included
See more

connection type input: Outer thread
connection type output: Outer thread
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 103451 Hose sets, angled item number 103451
  • Nominal-diameter: DN 3
  • Length: 100 mm
  • Connection-size-input: NPT1/8
  • Specials: M10X1, G1/8 & NPT1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 103449 Hose sets, angled item number 103449
  • Nominal-diameter: DN 3
  • Length: 100 mm
  • Connection-size-input: G1/8
  • Specials: M10X1 & G1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 103501 Hose sets, angled item number 103501
  • Nominal-diameter: DN 3
  • Length: 100 - 320 mm
  • Connection-size-input: M8X1
  • Specials: M8X1 both sides
See more

connection type input: Outer thread
connection type output: Outer thread
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 103450 Hose sets, angled item number 103450
  • Nominal-diameter: DN 3
  • Length: 200 mm
  • Connection-size-input: NPT1/8
  • Specials: M10X1, G1/8 & NPT1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

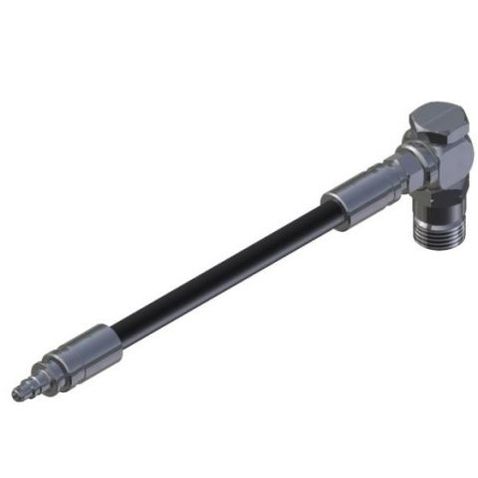

Hose sets, angled item number 102850 Hose sets, angled item number 102850
  • Nominal-diameter: DN 1
  • Length: 300 mm
  • Connection-size-input: M5
  • Specials: M6 & M8X1 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel

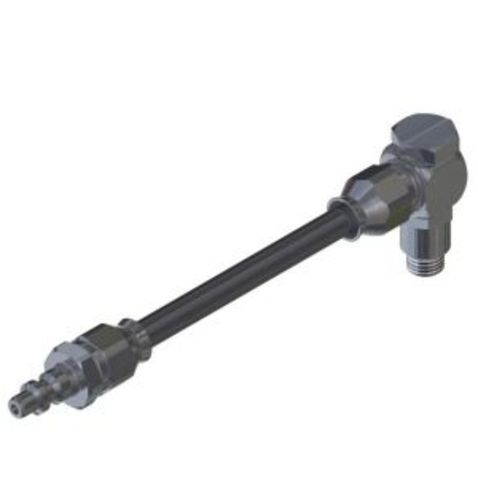

Hose sets, angled item number 101992 Hose sets, angled item number 101992
  • Nominal-diameter: DN 3
  • Length: 300 mm
  • Connection-size-input: G1/8
  • Specials: M10X1 & G1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 102247 Hose sets, angled item number 102247
  • Nominal-diameter: DN 3
  • Length: 100 - 280 mm
  • Connection-size-input: G1/8
  • Specials: M10X1 & G1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 102043 Hose sets, angled item number 102043
  • Nominal-diameter: DN 3
  • Length: 320 - 1000 mm
  • Connection-size-input: G1/8
  • Specials: M10X1 & G1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 102182 Hose sets, angled item number 102182
  • Nominal-diameter: DN 3
  • Length: 300 mm
  • Connection-size-input: NPT1/8
  • Specials: M10X1, G1/8 & NPT1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 102607 Hose sets, angled item number 102607
  • Nominal-diameter: DN 3
  • Length: 100 - 280 mm
  • Connection-size-input: NPT1/8
  • Specials: special length, M10X1 & NPT1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C

Hose sets, angled item number 102608 Hose sets, angled item number 102608
  • Nominal-diameter: DN 3
  • Length: 320 - 1000 mm
  • Connection-size-input: NPT1/8
  • Specials: special length, M10X1 & NPT1/8 thread adapter included
See more

connection type input: Outer thread
connection type output: MiniPlug Jack
working pressure: 0-200 Bar
material: Stainless Steel
temperature medium: 0 to 70 °C
temperature environment: 0 to 70 °C
